Internal architecture

Warning

The internal architecture might change over time.

Overview

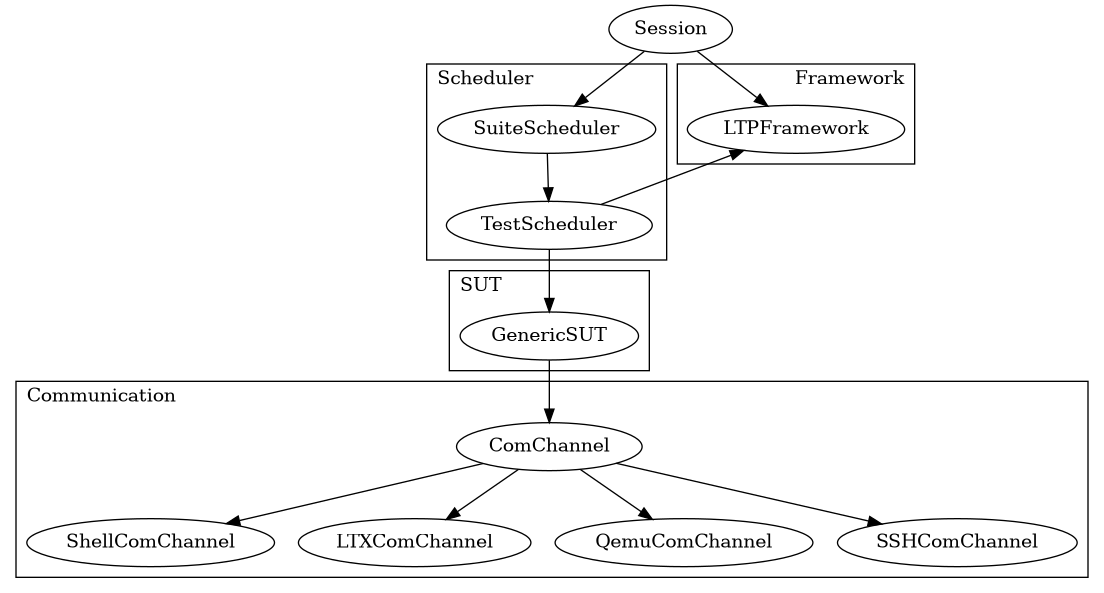

$digraph { newrank=true; subgraph cluster_0 { label = "Scheduler"; labeljust = "l"; SuiteScheduler; TestScheduler; SuiteScheduler -> TestScheduler; } subgraph cluster_1 { label = "Communication"; labeljust = "l"; ComChannel; ShellComChannel; LTXComChannel; QemuComChannel; SSHComChannel; ComChannel -> ShellComChannel; ComChannel -> LTXComChannel; ComChannel -> QemuComChannel; ComChannel -> SSHComChannel; } subgraph cluster_2 { label = "Framework"; labeljust = "r"; LTPFramework; } subgraph cluster_3 { label = "SUT"; labeljust = "l"; GenericSUT; } { rank=same; SuiteScheduler; LTPFramework; } Session -> SuiteScheduler; TestScheduler -> GenericSUT; GenericSUT -> ComChannel; Session -> LTPFramework; TestScheduler -> LTPFramework; }$

Plugins system

Inheritance diagram of libkirk.com.ComChannel, libkirk.plugin.Plugin, libkirk.sut.SUT, libkirk.sut_base.GenericSUT, libkirk.channels.shell.ShellComChannel, libkirk.channels.ltx_chan.LTXComChannel, libkirk.channels.qemu.QemuComChannel, libkirk.channels.ssh.SSHComChannel

Exceptions
